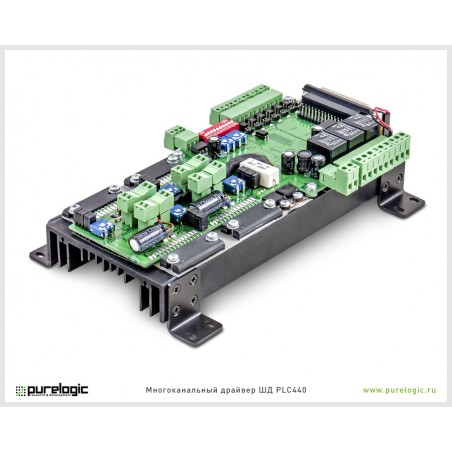

PLC440L 4-axis stepper driver 3A/30V each
search
  • PLC440L 4-axis stepper driver 3A/30V each
  • PLC440L 4-axis stepper driver 3A/30V each
  • PLC440L 4-axis stepper driver 3A/30V each
  • PLC440L 4-axis stepper driver 3A/30V each

PLC440L 4-axis stepper driver 3A/30V each

€169.99
Within 1 - 12 hours
  • 4-axis stepper driver3A/30V each.
  • Main features:
  • ñonnection to PC: LPT;
  • 2 relay (7A/220V);
  • microstep 2/8/16;
  • 5 optoisolated inputs;
  • timer on relay;
  • PWM->V converter.

Quantity
Delivery within a week



How to order



Security policy



Delivery

PLC440L is a modern and available microstepping multichannel driver of stepper motors. The driver has inbuilt protection coils from coil short-circuit and back EMF effect protection, softstarter, dumper, STEP frequency generator. The driver works with standard control protocol STEP/DIR/ENABLE . All driver’s control inputs are optoisolated and logic levels 2.5V, 3.3V, 5V compatible. The module is AUTO-SLEEP mode supplied which is turned on when there is no STEP signal. The multichannel driver supports control of frequency converter. The device is optimal for control of bipolar and unipolar Purelogic R&D stepper motors PL42/PL57 series Work with other stepper motors is also possible.

Purelogic
PLC440L 4-axis stepper driver
