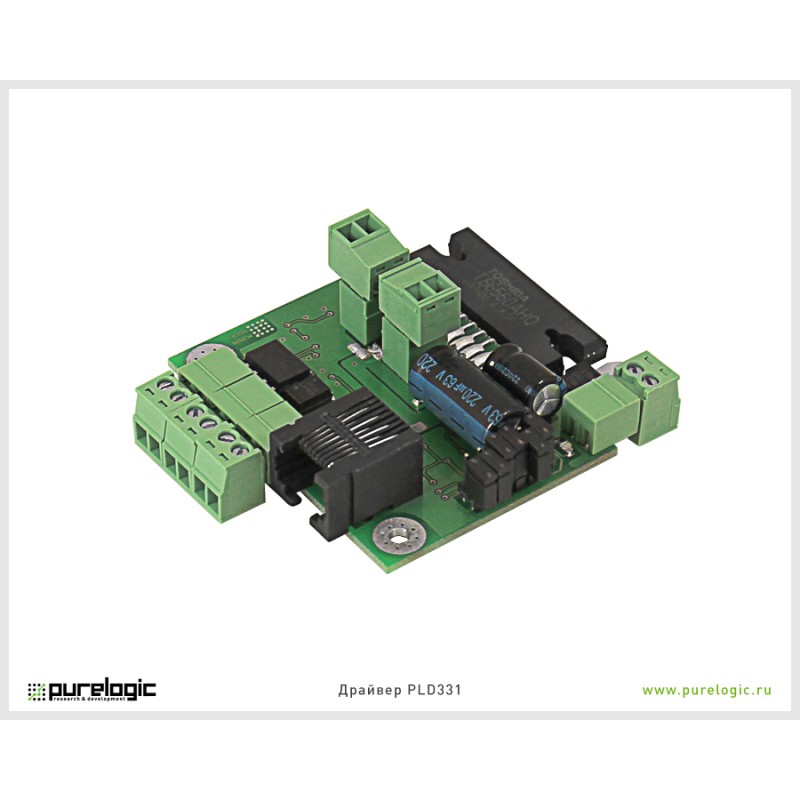

PLD331 Compact stepper driver without housing 30V/3A/100kHz.

€29.99
Within 1 - 12 hours
  • Compact stepper driver without housing 30V/3A/100kHz.
  • Microstepping 1/2/8/16;
  • Main features :
  • Antiresonance, short circuit protection;
  • damper inside;
  • overheat protection.
Quantity
Delivery within a week

PayPal


Security policy



Delivery



How to order

PLD331 is a microstepping stepper motor driver based on TB6560 microchip (TOSHIBA). The device has inbuilt coil short-circuit protection, polarity reversal power protection, protection against overvoltage and overheating. The driver works with standard control protocol STEP/DIR/ENABLE. All drivers control inputs are optoisolated and logic levels 2.5V, 3.3V, 5V compatible. The device is optimal for control of bipolar and unipolar Purelogic R&D stepper motors (PL42/ PL57 series). Work with other stepper motors is also possible. The driver must be mounted on the heatsink (is not included in the set), not less than 100 cm2 in area. The microchip 1 (fig. 4) must be mounted on the radiator through dielectric heat-conducting layer.
