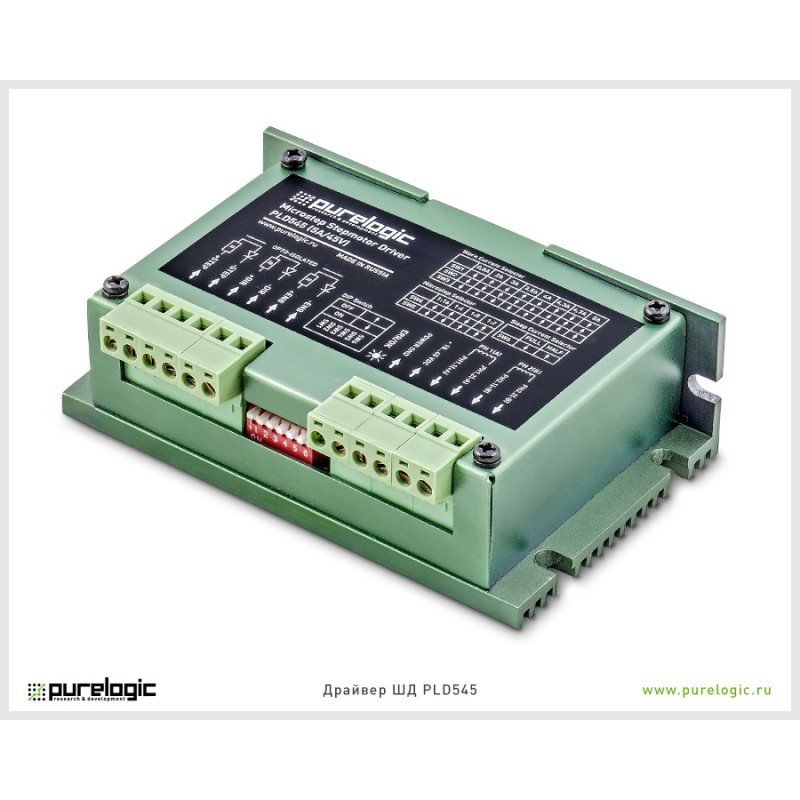

PLD545 Stepper driver 45V/5A/320kHz.
Stepper driver 45V/5A/320kHz. STEP/DIR/ENABLE; Microstepping 4/8/16/32; Main features : Antiresonance, morphing, short circuit protection; damper inside; soft start; overheat protection; test STEP generator. http://purelogic.ru/files/downloads/doc/Driver/pld545_eng.pdf
How to order
PLD545 is an available microstepping stepper motor driver. The driver has inbuilt coil short-circuit protection, back EMF effect protection, inbuilt automatic compensator of normal speed stepper motor resonance, modifications scheme of phase current. The driver works with standard control protocol STEP/DIR/ENABLE. The driver has discrete adjustment of working current. All driver control inputs are optoisolated and logic levels 2.5V, 3.3V, 5V compatible. The driver is AUTO-SLEEP mode supplied which is turned on when there is no STEP signal. The device is the optimal for control of bipolar and unipolar Purelogic R&D stepper motors (PL42/PL57 series) as well as other stepper motors.
