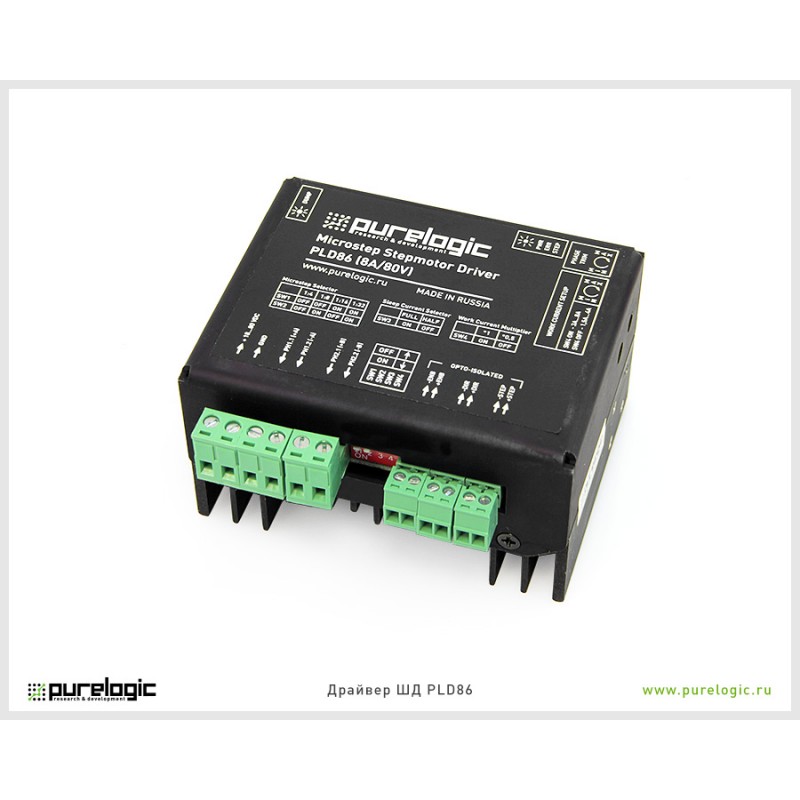

PLD86 Compact stepper driver 80V/8A/320kHz.

Within 1 - 12 hours
  • Compact stepper driver 80V/8A/320kHz. STEP/DIR/ENABLE;
  • Microstepping 4/8/16/32;
  • Main features :
  • Antiresonance, morphing, short circuit protection;
  • damper inside;
  • soft start; overheat protection;
  • test STEP generator.
  • Can be mounted on stepmotor.
Delivery within a week


How to order


Security policy



PLD86 is a modern and available microstep stepper motor driver of a new generation. The driver has inbuilt coil short-circuit protection, back EMF effect protection, inbuilt automatic compensator of normal speed stepper motor resonance, morphing, polarity reversal power protection and soft starter scheme; dumper. The driver works with standard control protocol STEP/DIR/ENABLE. All driver’s control inputs are optoisolated and logic levels 2.5V, 3.3V, 5V compatible. The module is AUTO-SLEEP mode supplied which is turned on when there is no STEP signal. The device is optimal for control of bipolar and unipolar Purelogic R&D stepper motors PL86 series (mounting to stepper motor housing is available). Work with other stepper motors is also possible.

PLD86 Stepper driver
