- New

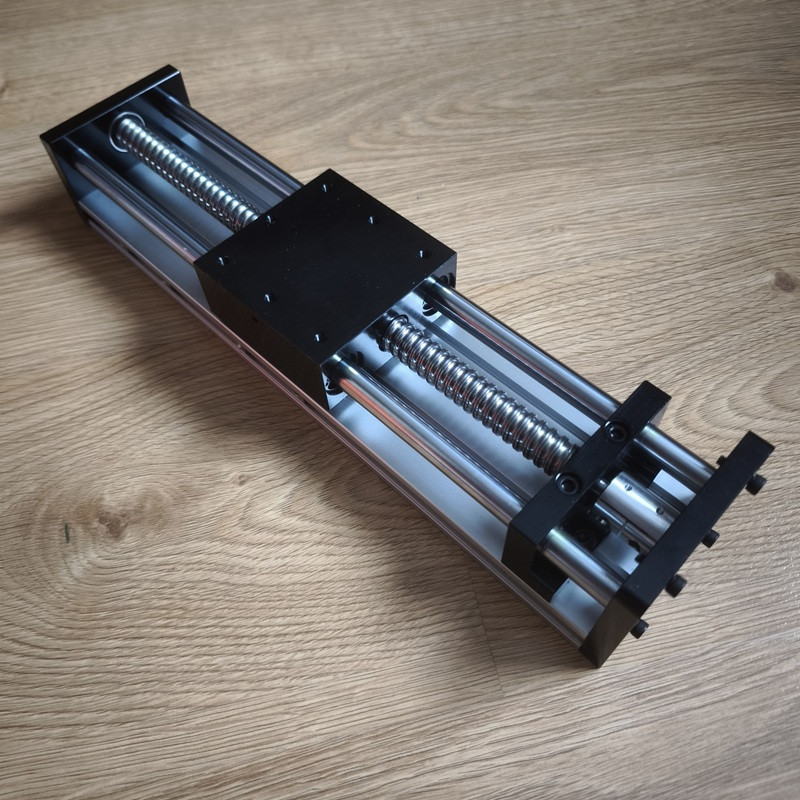

Z- axis Linear Actuator Stage, Stroke 200mm -400 mm lead screw 4-10mm
€189.99
Dispatch within 12-24 hours.
- The module is made on the basis of ball screws 1204 1605 1610 Strok 4mm. 5mm. 10mm For Nema 23 Motors
- Rail cylindrical guides WC12
- Working stroke: 200 -400mm.
- The module is designed for use with the Nema 23 stepper motor.
- Maximum travel speed: 5000 mm/min.
- Load capacity vertically: 15 kg.
- Load capacity horizontally: 30 kg.
- Plate material: aluminium.
- Weight : 8.0 kg.
- Linear Actuator Dimensions
How to order
Security policy
Delivery
- Z-axis for CNC plasma cutter or laser, linear guide table, ball screw 1204 1605 1610 for NEMA 23 motors
- Model LST8080
- Materia: Aluminum, Steel
- Horizontal Maximum Load 30KG
- Vertical Maximum Load 15KG
- Horizontal Maximum Speed 500mm/s
- Vertical Maximum Speed 300mm/s
- Shafts diameter 12mm
- Double Bearing Yes
- Weight 8 kg
- Package size 700X100X100 mm
Linear Stage LST8080 Stroke 200mm -400 mm
Data sheet
- Ball Screw / Lead Screw Type
- SFU 1204
SFU 1605
SFU 1610 - flange size
- Nema 23
- Shaft diameter
- 12 mm
- The module is made on the basis of ball screws 1204 1605 1610 Strok 4mm. 5mm. 10mm For Nema 23 Motors
- Rail cylindrical guides WC12
- Working stroke: 200 -400mm.
- The module is designed for use with the Nema 23 stepper motor.
- Maximum travel speed: 5000 mm/min.
- Load capacity vertically: 15 kg.
- Load capacity horizontally: 30 kg.
- Plate material: aluminium.
- Weight : 8.0 kg.
- Linear Actuator Dimensions
