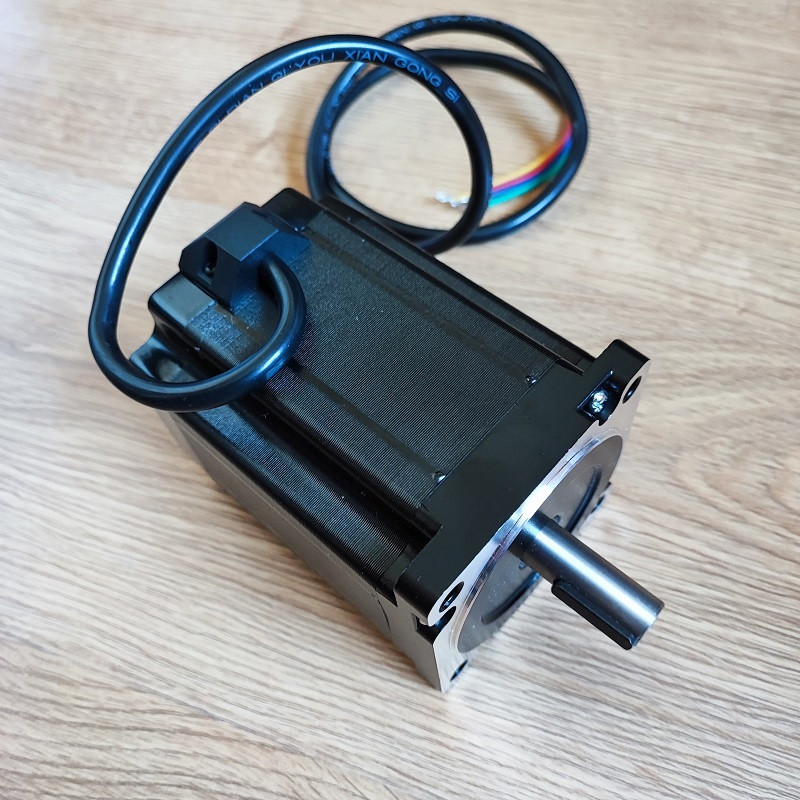

Nema 34 ar 8.5N.m 6.0A Diameters 14mm Soļu motors
199,99 €
Nosūtīšana 12–24 stundu laikā.
- Certification: ceCertification:
- ROHSCertification: CECertification:
- CCCCurrent / Phase: 6.0AStep
- Angle(degrees): 1.8 degree
- Phase: 2Type: Hybrid
- Model Number:
- Holding Torque: 85Kg.cm
- Phase Inductance: 9mH
- Detent Torque: 3600 g.cm Max
- Motor Length: 118 mm
- Rotor Intertia: 4000g.cm2
- No of leads: 4
- Phase Resisitance: 0.75Ω
- Rated voltage: 3.6V
- Motor Shaft: 14mm with 5mm key
Kā noformēt pasūtījumu
Drošs maksājums
Piegāde
- Certification: ceCertification:
- ROHSCertification: CECertification:
- CCCCurrent / Phase: 6.0AStep
- Angle(degrees): 1.8 degree
- Phase: 2Type: Hybrid
- Model Number:
- Holding Torque: 85Kg.cm
- Phase Inductance: 9mH
- Detent Torque: 3600 g.cm Max
- Motor Length: 118 mm
- Rotor Intertia: 4000g.cm2
- No of leads: 4
- Phase Resisitance: 0.75Ω
- Rated voltage: 3.6V
- Motor Shaft: 14mm with 5mm key
Nema 34 with 8.5N.m 5.6A Diameter 14mm stepper motor
Datu lapa
- flange size
- Nema 34
- Holding Torque
- 8.5 N.M
- Vārpstas diametrs
- 14.0 mm
- Vārpstu skaits
- 1 vārpsta
- Motora tips
- 2 fāžu
