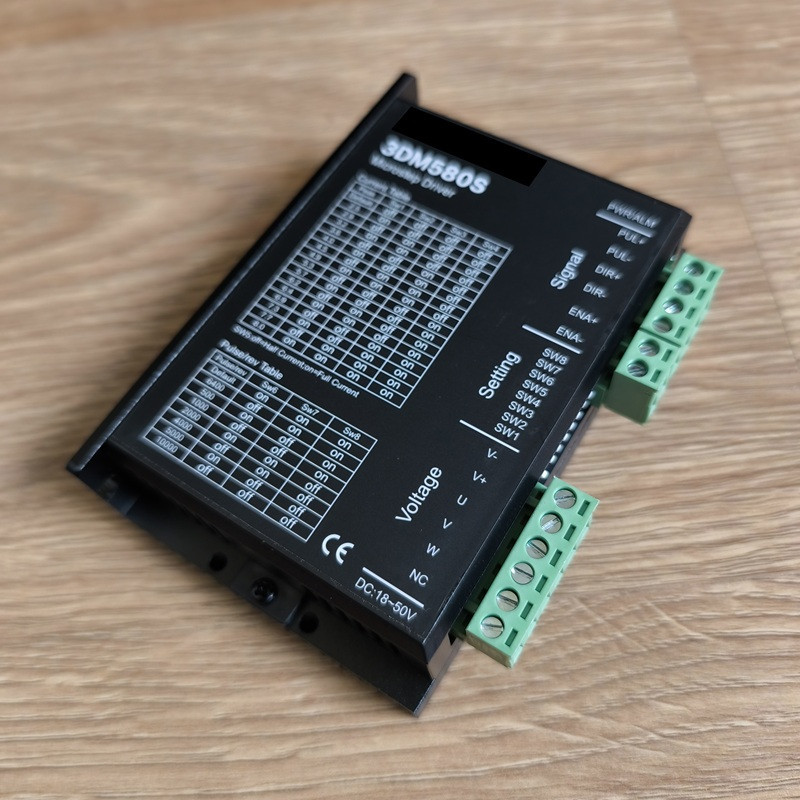

3DM580S 3 Phase Stepper Motor Driver 18-50VDC 1.0-8.0A
€84.99
● Step & direction (PUL/DIR) or CW/CCW (double pulse) control
● Suggested supply voltage 20-50 VDC, up to 74VDC
● 500KHz max pulse input frequency in dutycycle 50%
● 8 microstep resolutions of 200-10,000 via DIP switches, or 200-51,200 via software
● 16 output current settings of 2.1 -8.0A via DIP Switches, or 0.5-8.0A via software
● Configurable control command smoothing for reducing motor vibration
How to order
Security policy
Delivery
Leadshine Stepper Drive 3DM580
Features of Leadshine Stepper Drive 3DM580:
- Anti-Resonance, provides optimum torque and nulls mid-range instability
- Motor self-test and parameter auto-setup technology, offers optimum responses with different motors
- Multi-Stepping allows a low resolution step input to produce a higher microstep output for smooth system performance
- Microstep resolutions programmable, from 200 to 51,200 steps/rev
- Supply voltage up to 50 VDC
- Output current programmable, from 1.0A to 8.0A
- Pulse input frequency up to 500 KHz
- TTL compatible and optically isolated input
- Automatic idle-current reduction
- Support PUL/DIR and CW/CCW modes
- Over-voltage, over-current, short-circuit protections
